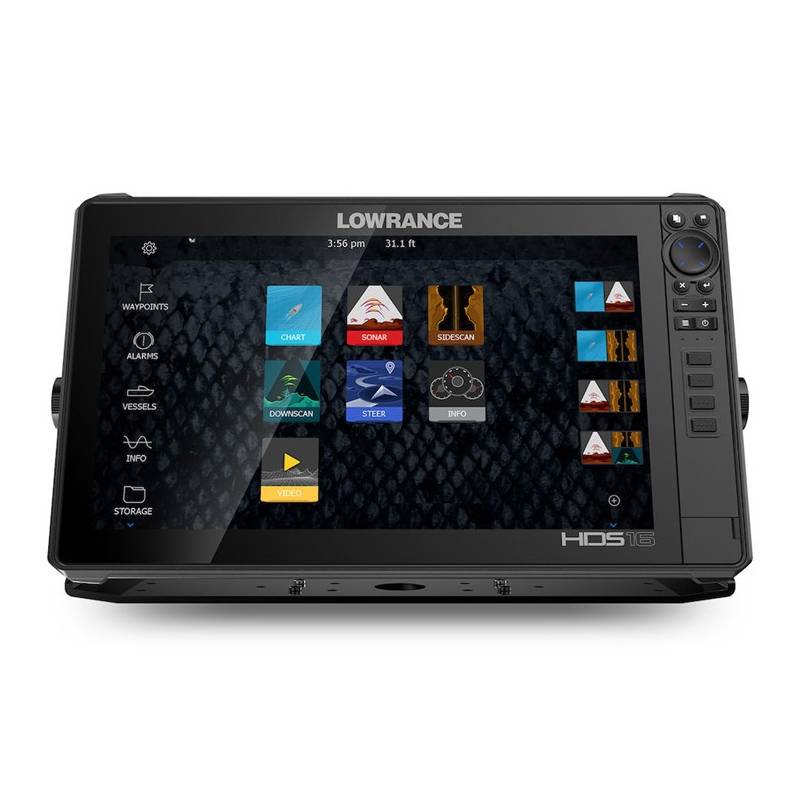

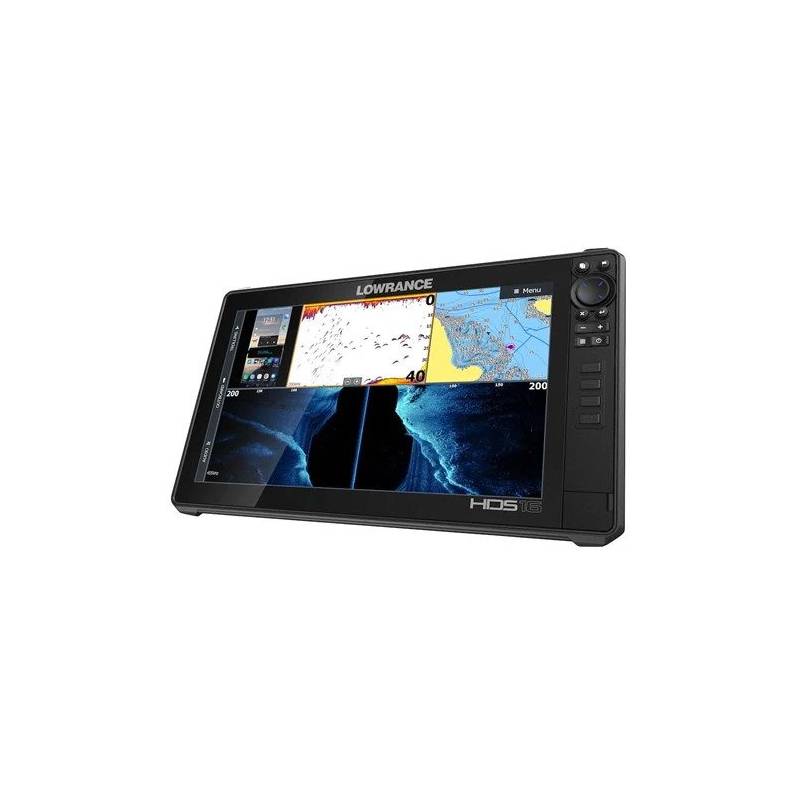

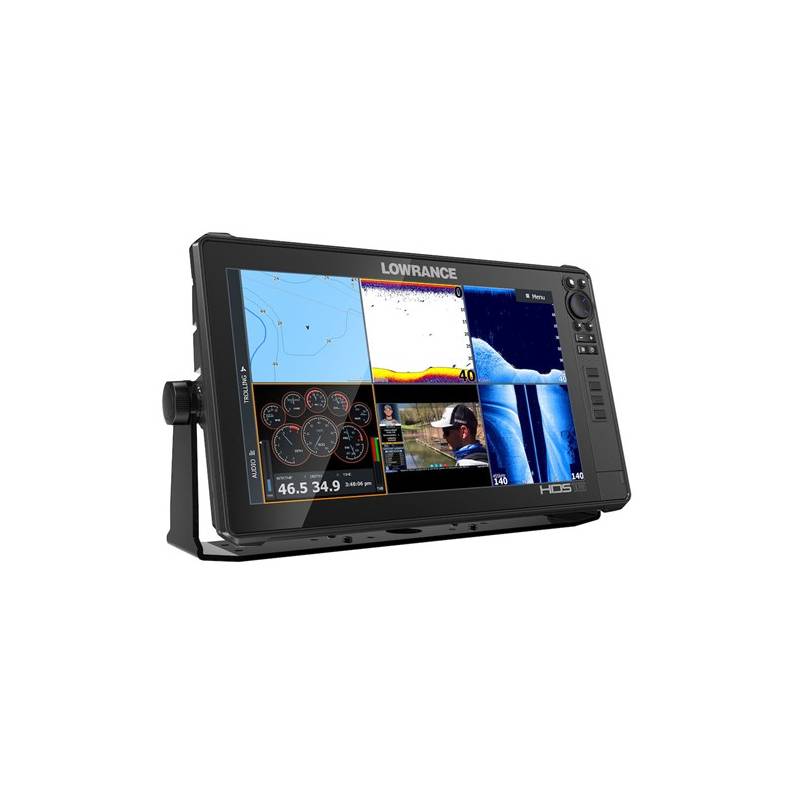

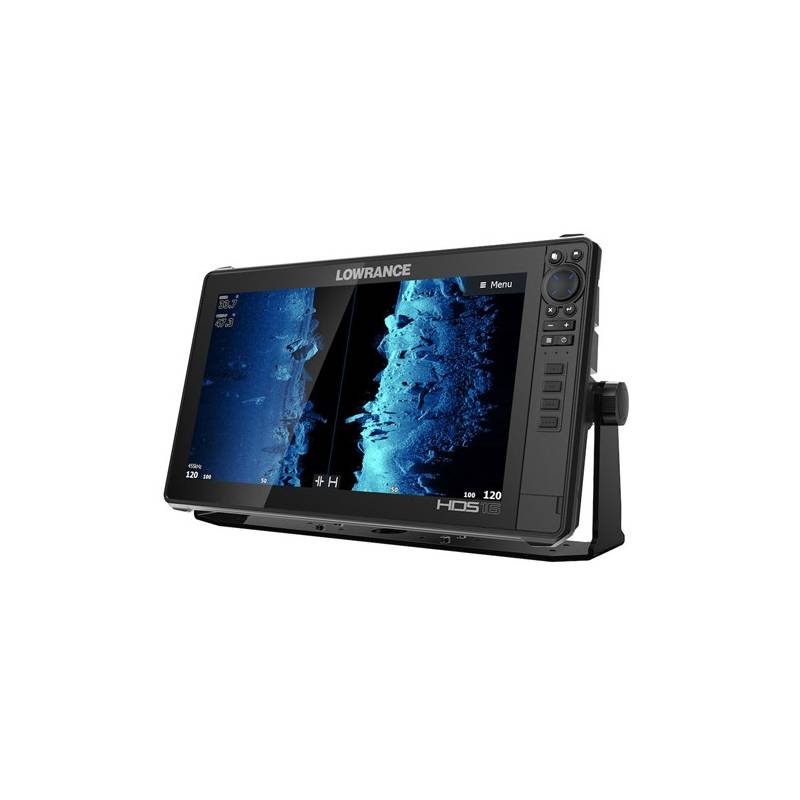

Sonar/chartplotter Lowrance HDS LIVE 16" Active Imaging 3-in-1

Sonar/chartplotter Lowrance HDS LIVE 16" Active Imaging 3-in-1

Cu HDS LIVE cea mai populară serie de sonare din gama profesioniala pentru pescuit a fost imbunatatita cu un design elegant, nou, procesor mai rapid, un set de instrumente de navigare HDS încorporat si suport pentru o intreaga gamă de noi tehnologii de pescuit, neegalate de orice alt sonar.

Pregătiți-vă pentru un nou nivel de performanță cu HDS LIVE, care include sonarul integrat Lowrance® CHIRP, suport pentru Active Imaging™, StructureScan® 3D cu Active Imaging și tehnologia revoluționara LiveSight™ Real-Time Sonar. Dotat cu cel mai bun set de instrumente de navigație încorporate vreodată într-un sonar / chartplotter, HDS LIVE dispune de o bază de date cartografice preîncărcată, asistență de rutare automată și nouă mapare pe ecran Genesis Live care oferă o cartografiere precisă în timp real, cu detalii de contur coborand pana la 15cm.

Caracteristici cheie:

• Compatibilitate sonar 3-in-1 Active Imaging™ (CHIRP / Side / Down) *
• Compatibilitate sonar 2-în-1 (lateral / jos) Active Imaging™ *
• StructureScan® 3D cu Active Imaging *
• Compatibilitate LiveSight *
• Notificări pentru smartphone-uri
• Procesor quad-core**
• Procesor dual-core performant
• Taste programabile **
• Cartografierea C-MAP Genesis Live pe ecran
• Vizualizare inteligentă a țintei FishReveal™
• Capacitate cu șase panouri, ecran splits **
• Ecran SolarMAX HD de înaltă definiție (numai HDS LIVE 16)
• Ecran multi-touch SolarMAX™ HD de înaltă rezoluție
• Pachet de harti preîncărcat (worldwide)
• C-MAP Easy Routing, compatibilitate Navionics Autorouting
• Dual-Channel CHIRP - acoperire dual sonar-range de la același traductor
• Live Network Sonar
• Compatibil cu SiriusXM® Marine Weather and Audio
• Conectivitate wireless și Bluetooth®
• Heat Map Chart Overlay
• Enhanced Surface Clarity
• Quick Access Control Bar
• Control direct de pe ecranul tactil pentru MotorGuide® Xi5 Trolling Motor, Outboard Pilot și a ancorelor Power Pole®
• Conectivitate audio la serverul Radar și SonicHub®2
• Suport motor NMEA 2000®
• Actualizările opționale pentru harti includ C-MAP, Navionics® și multe altele

* Traductor vândut separat
** doar pentru HDS LIVE 16/12

Specificatii tehnice:

• Cartography included C-MAP World Background (ROW models)Navionics basemap (AMER and ROW models)
• Screen Brightness >1200 Nits
• Update rate 10 Hz
• GPS 10 Hz GPS/GLONASS WAAS/EGNOS/MSAS
• Shock Vibration 100,000 cycles of 20 G
• Supply Voltage 12 v DC (10.8-17VDC)
• Compass Safe 12" (300mm)
• GPS Receiver Channels 16

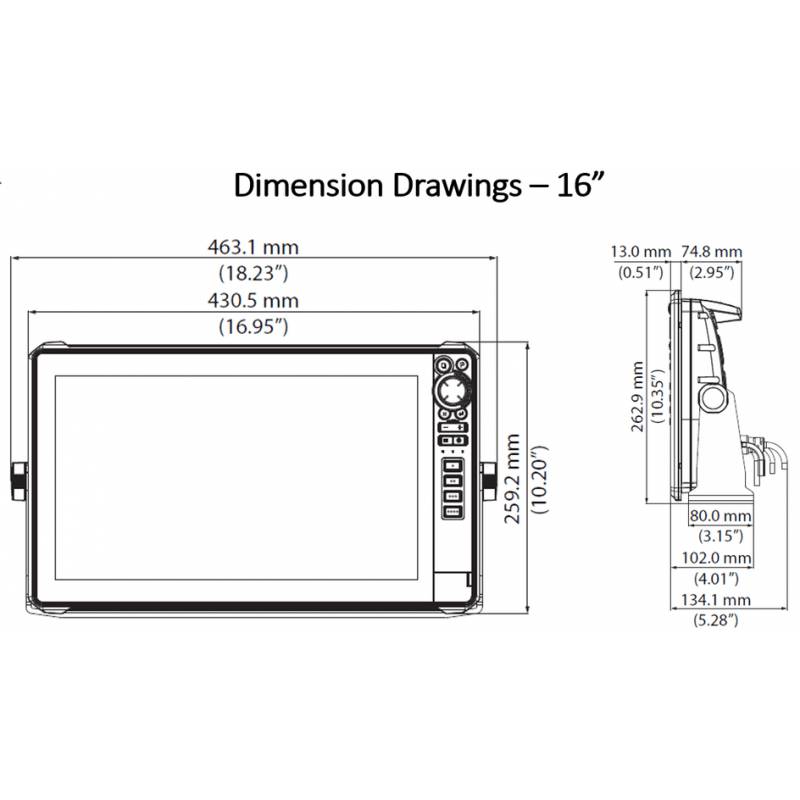

• Dimensions W x H x D 16.95in (430.5mm) x 10.20in (259.2mm) x 3.46in (87.8mm)
• Display Resolution 1920 x 1080 Full HD
• NMEA 2000 Connectivity 1x Micro-C
• SD Card Storage 2 micro SD cards up to 32GB
• Ethernet Ports 2 x 100 Mbit, 6 max MFD's on a network
• Position Accuracy 20m RMS
• Power Consumption typical 3.00 @ 13VDC with Full Backlight, Sonar on
• Power Consumption min 3.00 @ 13VDC with Full Backlight, Sonar on
• Waypoints, Routes, Tracks 3000 Waypoints100 Routes100 Trails with up to 10,000 points per trail
• Time to First Fix 30s
• Power Consumption max 4.9A @ 13VDC with Full Backlight, Sonar on
• Storage Temperature Range 4°F to 140°F (-20°C to 60°C )
• Radar compatibility 4G (Broadband)3G (Broadband)Halo24 (Pulse Compression Dome Radar)Halo 3'/4'/6' (Open Array Pulse Compression Radar)
• Operating Temperature Range 5°F to 131°F (-15°C to 55°C )
• Recommended Fuse Rating 6.5A
• Humidity 60°C, 95% relative humidity (RH) for 18 hours
• Weight 7.94lb (3.60kg)
• Internal Storage 8.0 GB Internal
• Viewing Angles 80° top/bottom, 80° left/right
• AIS Chart and Radar overlay. Target vessel details.
• Charts supported C-MAP (MAX N, MAX N+)C-MAP GenesisC-MAP Precision Contour HD (AMER ONLY)Navionics (Gold, NAV+ Platinum+)Insight (Pro and HD)Lowrance Regional Mapping Partners
• Steering Modes CourseHeadingWaypointPower Steer
• Manouevres Turn Patterns CourseHeadingWaypointPower SteerU-TurnC-TurnSpiralZigzagSquareLazy-S
• Digital Switching CzoneNaviop
• Correction DGPS, WAAS
• Approvals Compliance FCC, Industry Canada, Radio Equipment Directive, ACMA, RSM
• Mounting Type Gimbal BracketFront Dash Flush MountRear Dash Flush Mount
• Integrated Bluetooth 4.0 with support for Bluetooth Classic
• Sonar Compatibility Integrated: CHIRPBroadbandActive Imaging DownScanActive Imaging SideScanCompatible with: SonarHubStructureScanStructureScan3D
• Item Connectivity WiFi Internal 802.11b/g/n and Compatible with WiFi-1 Module
• Waterproofrating IPX7 with card door closed
• Language on products will vary depending on where you purchase the unit. However, all units since 2017 come with basic languages including English, French, German, Spanish, Finnish, Italian, Dutch, Norwegian, Portuguese, Swedish & Chinese. Additional language packs are also available, for these please contact your local distributors, retailers or dealer, where you purchased your unit from. Standard Language Pack: Afrikaans/Afrikaans, Danish/Dansk, German/Deutsch, English (US), English (UK), Spanish/Español, Finnish/Suomi, French/Français, Greek/Ελληνικά, Icelandic/íslenska, Italian/Italiano, Dutch/Nederlands, Norwegian/Norsk, Portugese (Brazil)/Português (BR), Portugese (Portugal)/Português (PT), Swedish/Svenska. Asian Language Pack: English (US), English (UK), Japanese/日本語, Korean/한국어, Thai/ภาษาไทย, Chinese - (simplified) China/简体中文, Chinese - (traditional) Taiwan/繁體中文 . Eastern European Language Pack: Bulgarian/Български, German/Deutsch, Estonian/Eesti, English (US), English (UK), Spanish/Español, French/Français, Hebrew/ عبری , Croatian/ Hrvatski, Hungarian/ Magyar, Italian/Italiano, Lithuanian/Lietuvos, Latvian/ Latvijas, Polish/Polski, Slovak/ Slovensky, Turkish/Türkçe. Russia/Ukraine Language pack: German/Deutsch, English (US), English (UK), Spanish/Español, Italian/Italiano, Russian/Русский, Ukraine/ Українська. Middle Eastern Language Pack: Arabic (UAE)/ العربية , German/Deutsch, English (US), English (UK), Farsi/ فارسی , French/Français, Italian/Italiano
• PC Connectivity None
• Autopilot Outboard PilotMotorGuide Xi5/Xi3 Trolling Motor **requires Motorguide PinPoint Gateway
• Video Output:NoInput:HDMIComposite video RCA - singlechannel via optional adaptor
• Backlight Color Pure White LED
• N2K PGNs: Receive only65240 ISO Commanded Address, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127505 Fluid Level, 127508 Battery Status, 129033 Time and Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Address Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 65285 Temperature with Instance, 65325 Reprogramming Status, 65480 Parameter Reply, 130817 Product Information, 130820 Reprogramming Status, 130832 Fuel Used – High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130842 AIS and VHF Message Transport, 130843 Sonar Status – Frequency and DSP VoltageTransmit and Receive:59392 ISO Acknowledgement, 59904 ISO Request, 60160 ISO Transport Protocol, Data Transfer, 60416 ISO Transport Protocol, Connection Management, 60928 ISO Address Claim, 126208 NMEA Group Function, 126464 Receive/Transmit PGN’s group function, 126992 System Time, 126996 Product Information, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, 128267 Water Depth, 128275 Distance Log, 129025 Position, Rapid Update, 120296 COG and SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats In View, 130074 Route and WP Service – WP List - WP Name and Position, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 61184 Parameter Command, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 65323 Data User Group Request, 130831 EP-20 Suzuki Engine and EP-50 Storage Device Configuration, 130835 Set Engine and Tank Configuration, 130839 EP-45 Pressure Configuration, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130851 Event ReplyTransmit only65287 Temperature Sensor Configuration, 65289 Trim Tab Configuration, 65290 Paddle Wheel Speed Configuration, 130818 Reprogramming Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Configuration, 130837 Fuel Flow Turbine Configuration
• Weather SiriusXM via WM-3 (USA only)
• Multimedia SonicHubSonicHub2FusionLink productsany NMEA 2000 compliant Marine Aduio products
• Interface Touchscreen:Full Multi-touch touchscreenKeypad:8-way directional keypadZoom +/-ExitEnterMenuWaypointPower/Light4 - User Programmable Quick Access Keys
• NMEA 0183 Sentences supported: TX / RX - GPSReceive GGA GLL GSA GSV VTG ZDATransmit GGA GLL GSA GSV VTG ZDA GLCTX / RX - NavigationReceive RMCTransmit AAM APB BOD BWC BWR RMC RMB XTE XDRTX / RX - SonarReceive DBT DPT MTW VLW VHMTransmit DBT DPT MTW VLW VHMTX / RX - CompassReceive HDG HDT HDMTransmit HDGTX / RX - WindReceive MWV MWDTransmit MWV MWDTX / RX - AIS / DSC*Receive DSC DSE VDM*AIS sentences are not bridged to or from NMEA 2000.

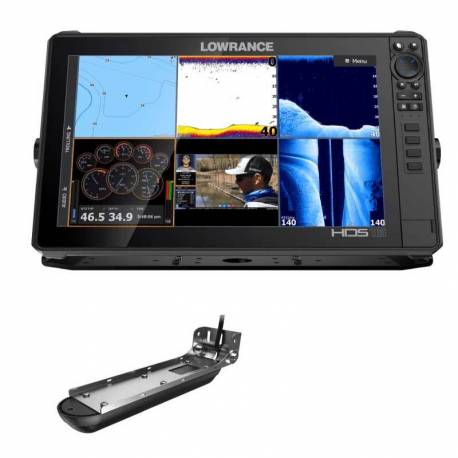

Pachetul contine:

• Lowrance HDS LIVE 16

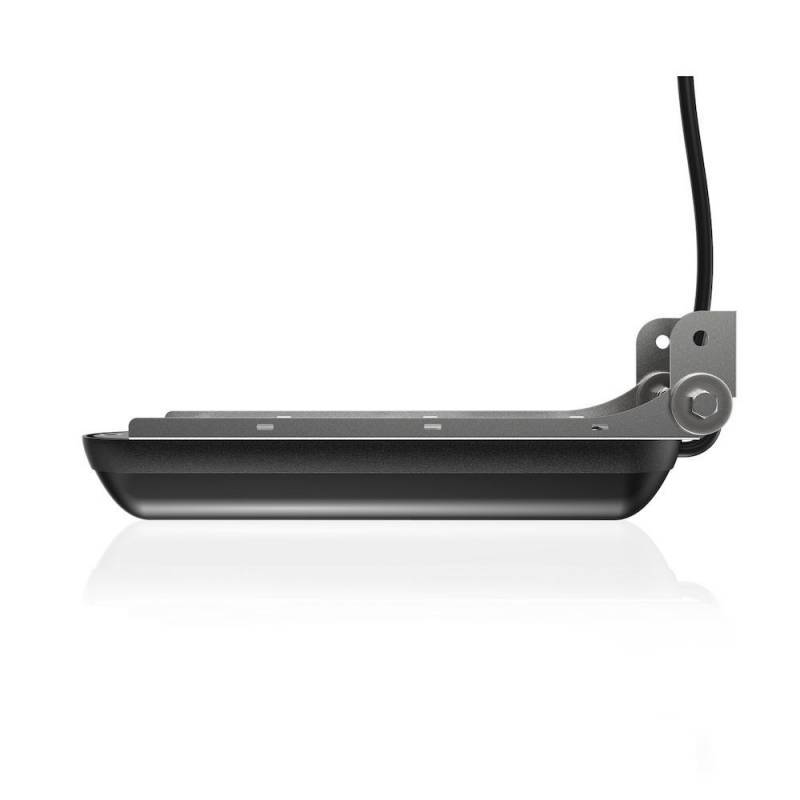

• Active Imaging 3-in-1 Transducer
• PC-30-RS422 Power Cable for HDS Series
• HDS-16 LIVE Bracket
• HDS-16 LIVE Suncover
• HDS-16 LIVE Bezel and SD-Card Door.
