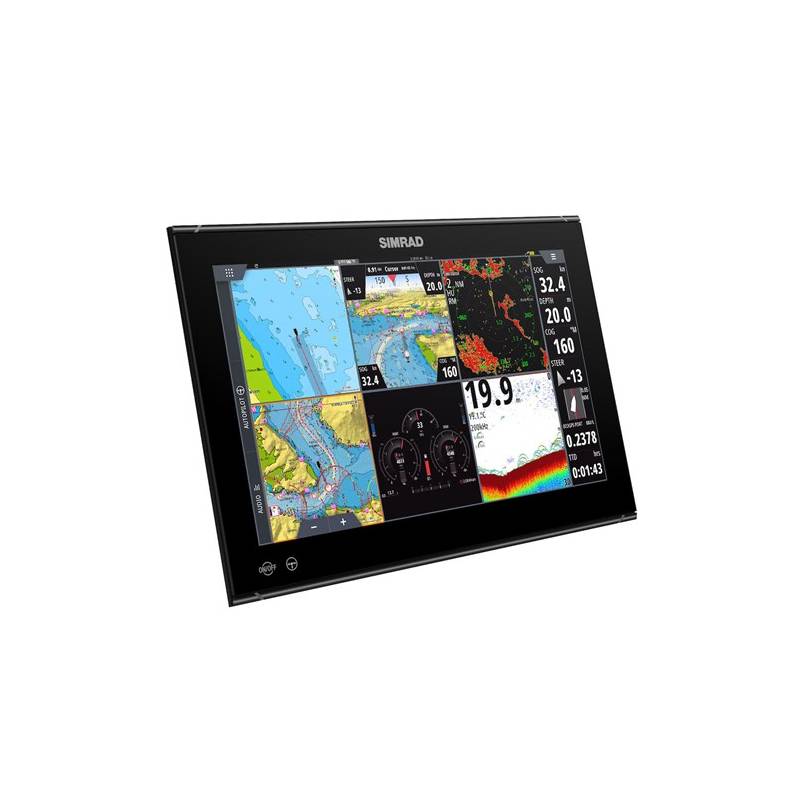

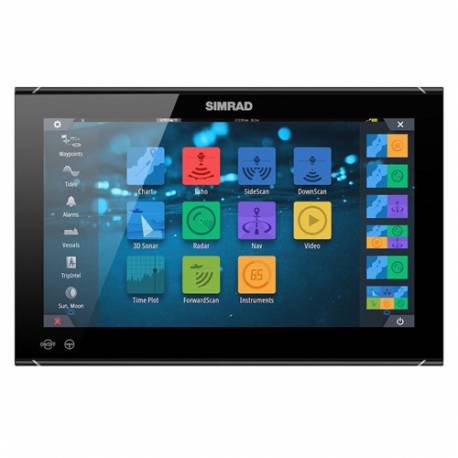

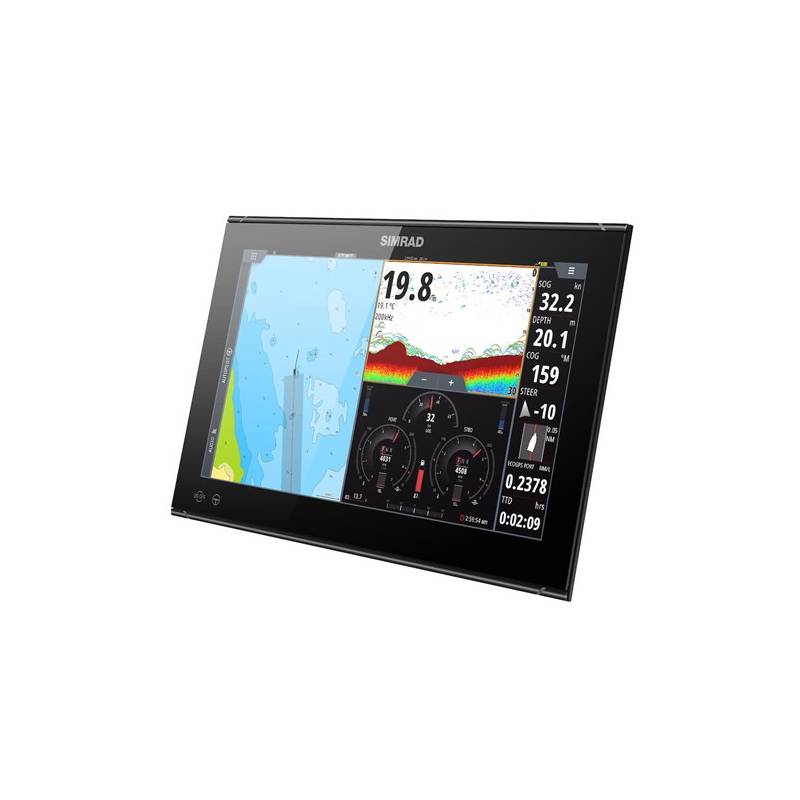

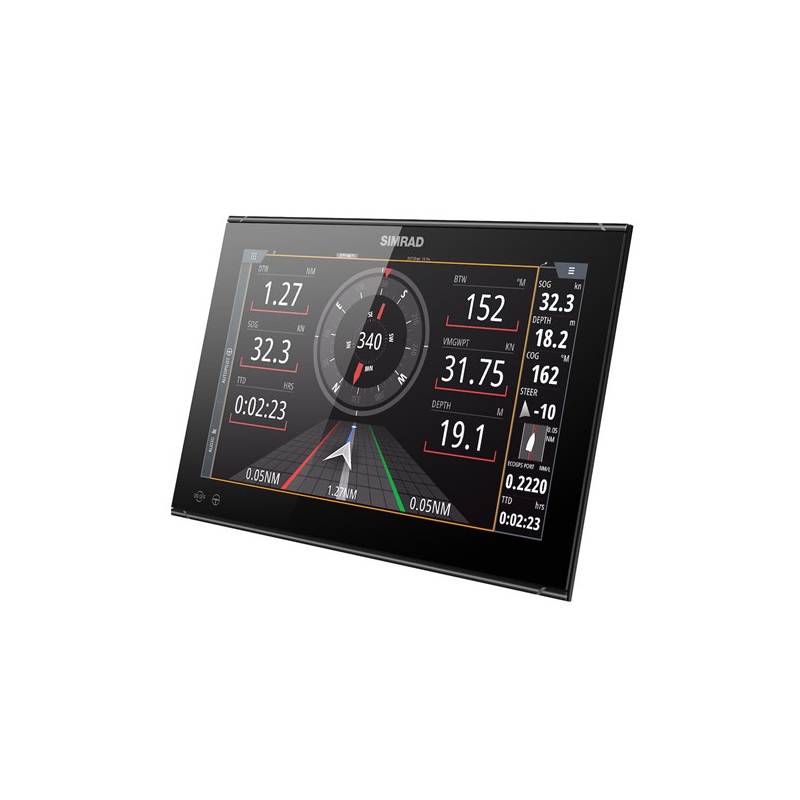

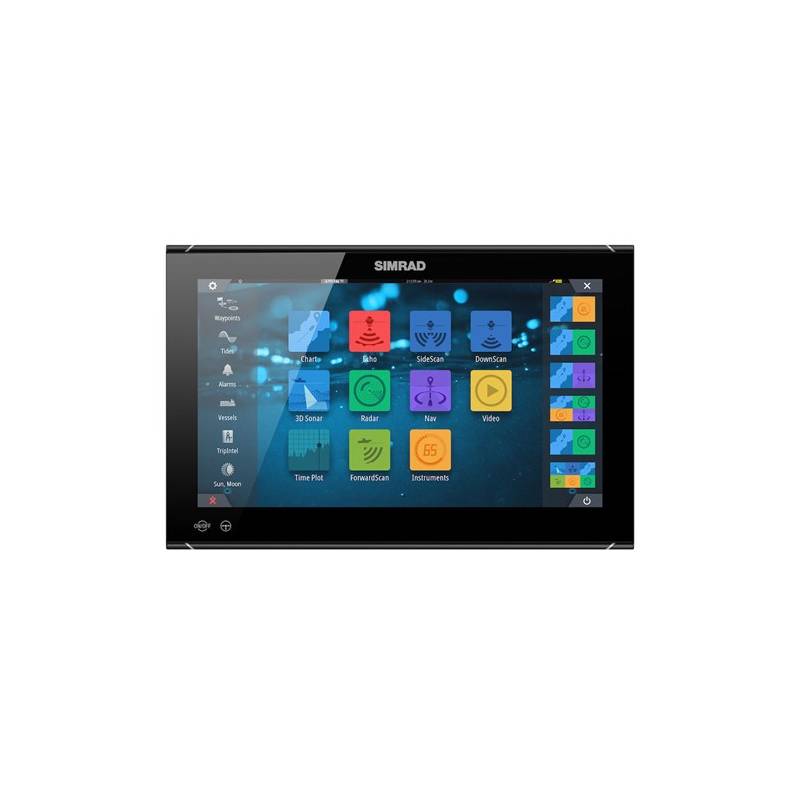

Display multifunctional marin SIMRAD NSO EVO3S 19" MFD Display Only

Display multifunctional marin SIMRAD NSO EVO3S 19" MFD Display Only

Simrad NSO evo3S - performanța supremă

Fiecare afișaj NSO evo3S are noul procesor integrat cu șase nuclee iMX 8, oferind timpi de răspuns de categorie pentru tranziții de ecran incredibil de netede. Cu o performanță de până la două ori mai mare a procesorului, aveți acces instantaneu la informațiile de care aveți nevoie, așa cum aveți nevoie, indiferent de condiții. Creați-vă propriile machete personalizate de cârmă pentru a se potrivi oricărei activități și comutați fără probleme între machete într-o clipă. Stilul glass helm cu profil redus ascunde și protejează nucleul puternic al NSO evo3 și completează orice design de cârmă, de la ultra-modern la clasic atemporal.

Claritate finală cu control intuitiv pe ecran tactil

SIMRAD NSO evo3S oferă o vizualizare excelentă cu un ecran ultra-luminos, disponibil în dimensiuni widescreen de 16, 19 sau 24 de inch. Unghiurile largi de vizualizare păstrează ecranul vizibil de oriunde, chiar dacă purtați ochelari de soare polarizați. Experimentați o claritate uimitoare cu rezoluția Full HD și opțiunea de a combina până la șase panouri într-un aspect cu ecran divizat. Navigați intuitiv în diagrame, definiți puncte de parcurs și preluați controlul sistemelor conectate, cum ar fi pilot automat, radar și sonar la o atingere.

Complet conectat

Conectivitatea wireless încorporată conectează SIMRAD NSO evo3S la dispozitivele dvs. mobile existente pentru vizualizare și control de la distanță și oferă upgrade-uri ușoare de software online prin orice hotspot de internet wireless. Rețeaua Ethernet cu fir, NMEA 2000® și rețeaua J1939 oferă opțiuni de integrare aproape nelimitate, de la sisteme de afișare la nivel de navă până la radar, sonar, integrarea motorului și multe altele.

Caracteristici cheie Simrad NSO evo3S:

• Procesor iMX 8 integrat cu șase nuclee pentru performanțe superioare
• Afișaj ultra-clar, Full HD de 19 inci
• Control fără probleme al ecranului tactil al întregului sistem SIMRAD® conectat
• Stil glass helm cu profil redus
• Vizibilitate extinsă cu opțiunea ecranului divizat cu șase panouri
• Conectare la smartphone, tablete și hotspot-uri de internet.

Display multifunctional marin SIMRAD NSO EVO3S 19" MFD Display Only - specificatii tehnice:

• Storage Temperature Range: -20°C to +60°C (4°F to 140°F)
• SD Card Storage: 1 Micro SD slot, or use USB Dashmount Card reader MI10 with 2x Micro SD slots. max. 32GB each. >32 GB format to NTFS
• NMEA 2000 Connectivity 1 x NMEA 2000 Micro-C port, 1 LEN
• Supply Voltage 10 - 32 V DC
• Screen Brightness 1200 nits
• Operating Temperature Range -15°C to +55°C (5° F to 131° F)
• Internal Storage 16 GB
• Display Size 19 inches
• Display Resolution 1920x1080
• Warranty Period 2 Years
• Video 2x composite video (BNC)1x high definition video (1080p, HDCP 1.4, HDMI-A)1x high definition video output (1080p, no HDCP, HDMI-A)
• Ethernet Ports 3 x 100 Mbits/s ports, RJ 45. (Adapt to 5 pin yellow using adapter cable 000-11246-001)
• Weight 4.8 kg (10.5 lbs.)
• Dimensions W x H x D 478.1 x 305 x 83 mm (18.82 x 12.01 x 3.27“)With bracket: 509.9 x 348 x 214.6 mm (20.08 x 13.7 x 8.45“)
• Compass Safe 50 cm (19.7")
• Power Consumption max 50 W +- 4 W
• Waypoints, Routes, Tracks 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
• Recommended Fuse Rating 7 A @ 12 V DC
• Viewing Angles 80° top/bottom, 80° left/right
• Steering Modes Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)
• Autopilot Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail). Requires STBY button or Controller with STBY button to commission
• Digital Switching BEP C-Zone, Naviop
• Approvals Compliance CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1
• Shock Vibration CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1
• Sonar Compatibility External echo sounder module or connection to an MFD with built in echo sounder that can share sonar over Ethernet is required.
• GPS External GPS required
• Radar compatibility Halo, Broadband, HD Radars
• PC Connectivity HDMI Video in from a PC
• NMEA 0183 Sentences supported Input: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, HDT, HDM, MWV, MWD, DSC, DSE, VDM. (Note AIS sentences are not bridged to or from NMEA 2000)Output: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, MWV, MWD, TLL, TTM
• Charts supported Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts)
• Bluetooth Internal
• Item Connectivity WiFi Internal 802.11b/g/n
• Waterproofrating IPX6 on the font (when panel mounted correctly with only the front exposed) Rear not waterproof
• Time to First Fix N/A
• Correction N/A
• Position Accuracy N/A
• GPS Receiver Channels N/A
• Update rate N/A
• Mounting Type Panel or Bracket mount (use optional heavy duty bracket 000-13547-001
• AIS Receive AIS data over NMEA 2000 Or NMEA 0183 (IAS is not bridged to N2K)
• N2K PGNs
• Receive only59392 ISO Acknowledgement, 59904 ISO Request, 60928 ISO Address Claim, 65285 Temperature with Instance, 65323 Data User Group Request, 65325 Reprogram Status, 65341 Autopilot Mode, 65480 Autopilot Mode, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127503 AC input status, 127504 AC Output Status, 127505 Fluid Level, 127506 DC Detailed Status, 127507 Charger Status, 127508 Battery Status, 127509 Inverter Status, 129033 Time & Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Addressed Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 129809 AIS Class B “CS” Static Data Report, Part A, 129810 AIS Class B “CS” Static Data Report, Part B, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 130842 SimNet DSC Message, 130851 Event Reply, 130817 Product Info, 130820 Reprogram Status, 130832 Fuel Used - High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130843 Sonar Status, Frequency and DSP Voltage,Transmit and Receive:61184 Parameter Request/Command, 65289 Trim Tab Insect Configuration, 65291 Backlight Control, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 126208 ISO Command Group Function, 126992 System Time, 126996 Product Info, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, Water referenced, 128267 Water Depth, 128275 Distance Log, 129025 Position, Rapid Update, 129026 COG & SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats in View, 130074 Route and WP Service - WP List - WP Name & Position, 130306 Wind Data, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130831 Suzuki Engine and Storage Device Config, 130835 SetEngineAndTankConfiguration, 130839 Pressure Insect ConfigurationTransmit only65287 Configure Temperature INSOcts, 65290 Paddle Wheel Speed Configuration, 129285 Route/Waypoint Data, 130818 Reprogram Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Insect Configuration, 130837 Fuel Flow Turbine Configuration
• Weather SiriusXM via WM-3 (USA only), GRIB
• Languages Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish. Other Language unlocksAsian Language Pack: English (US), Japanese, Korean, Thai, Chinese, Eastern European Language Pack: English (US), English (UK), Bulgarian, German, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Lithuanian, Latvian, Polish, Slovak, TurkishRussia/Ukraine Language pack: English (US), English(UK), German, Spanish, French, Italian, Russian, UkrainianMiddle Eastern Language Pack: English (US), English (UK), Arabic, German, Spanish, Farsi, French, Italian
• Interface Touch screen, OP40 or OP50 controller via NMEA 2000
• Manouevres Turn Patterns U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking
• Multimedia via SonicHub2, Fusion Link, *Sirius, **JL Audio. *USA only, **AUST. & NZ only)
• Backlight Color White
• Cartography included World basemap.

Pachetul contine:

• Suncover, Simrad, 19" Monitor
• MO19 Bezels
• RJ45 - Ethernet Adapter Cable
• Rear mount bracket kit for MO16/19/24 monitors
• MO16/19/24 Cable Retention Bracket
• NMEA 2000 Micro-C Low Loss 4 Way Joiner
• N2K-PWR-RD Network Power Node
• NMEA 2000 6ft Network Extension Cable
• TR-120-KIT Network Terminator Kit.
