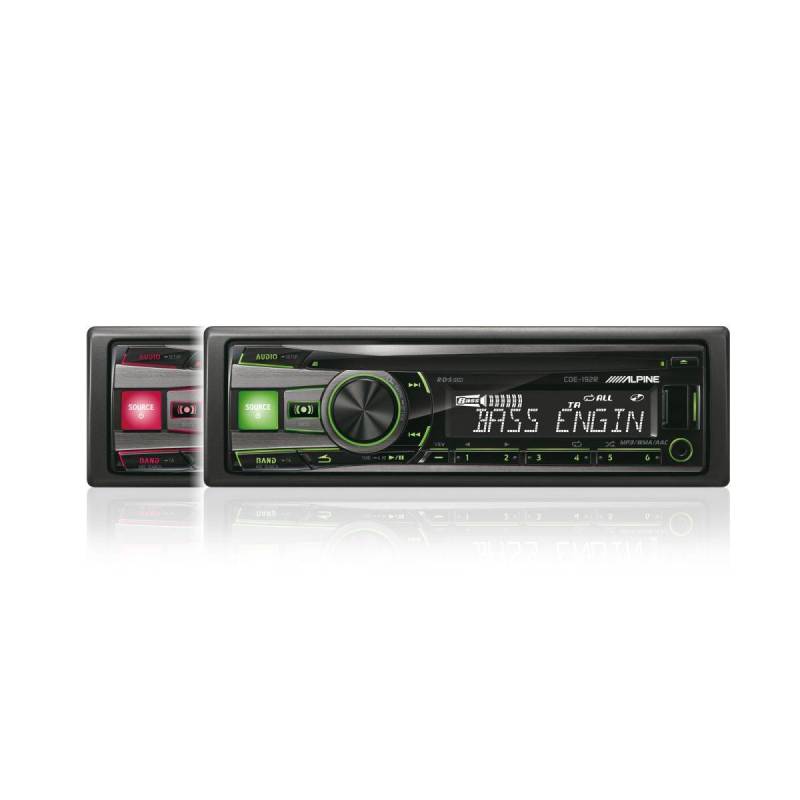

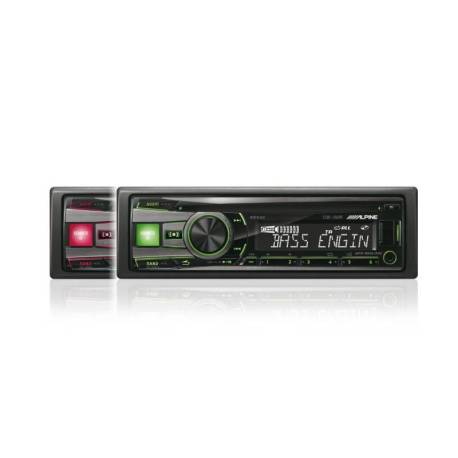

ALPINE CDE-192R Radio Cd/usb, Control I-Pod, Rosu/verde

ALPINE CDE-192R Radio Cd/usb, Control I-Pod, Rosu/verde

• CDE–192R ofera o conexiune USB de mare viteză pentru a vă bucura de funcțiile de pe iPod sau iPhone. Calitate superioară a sunetului și functionare ușoară!
• Butonul BASS de lângă butonul central va duce direct la funcția de reglare a nivelului de bass.
• Puteti conecta iPhone-ul prin USB și App Direct si va permite să ascultați sunetul din mai multe aplicații prin difuzoarele auto.
• CDE–192R oferă o funcție rapidă de încărcare la un maxim de 1000mA, pentru reîncărcare rapidă a bateriei telefonului.

Specificatii:

Tuner

    Memory Presets: Preset Stations (FM:18, MW:6, LW:6)
    Memory: Auto Memory
    Seek Mode: Local/DX Selection

RDS

    RDS Functions: AF, TA, TP, PTY, EON, Radio Text

Made for iPod® / iPhone®

    Compatibility for iPod/iPhone: Made for iPod touch 5th/4th/3rd/2nd/1st Gen., iPod nano 7th/6th/5th/4th/3rd Gen., iPod classic 160GB/120GB/80GB, iPhone 6S Plus and 6S, IPhone 6 Plus and 6,  iPhone 5S, iPhone 5, iPhone 5C, iPhone 4S, iPhone 4, iPhone 3GS, iPhone 3G and iPhone
    Connection: KCU-445i Required (for iPods / iPhones with 30-pin connector)
    Available Selections: Playlist, Artist, Album, Song, Podcast, Genre, Composer, Audiobook, Genius Mix
    Alphabet Search
    Percentage Search
    App Direct Mode
    Direct Up/Down: Playlist, Artist, Album, Genre Up/Down
    M.I.X. (Shuffle) Play: Songs, Albums
    Repeat
    Battery Charging

Disc Player

    Disc Type: CD Player
    Disc Playback Type: CD, CD-R/RW
    Music Playback: CDDA, MP3, WMA, AAC Playback
    M.I.X. Random Play:  M.I.X. Mode
    Repeat
    Playback Control: Play/Pause/Forward/Backward
    CD Text Display: Disc/ Track display
    CD Text Name Search
    Percentage Search （MP3/AAC/WMA Only)
    Zero data Mute
    DAC: Multi Bit DAC
    Digital Servo

USB Media Connection

    USB Connection: Front USB Connection with 1000mA charging support and iPhone quick charging
    Music Playback: MP3, WMA, AAC Playback
    USB Class: Mass Storage Class
    File/Folder Name Search
    Percentage Search
    Folder Up/Down
    M.I.X. Random Play: Files in a folder, All
    Repeat

Sound Tuning

    BassEngine SQ
    Subwoofer Level Adjustment
    Subwoofer Phase Select
    Subwoofer System Select: Subwoofer Level Control Management
    Low Pass Filter
    Default Equalizer setup
    Equalizer: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country, Classic
    3-band Parametric Equalizer
    Factory EQ: 10 types
    Tone control: Bass/Mid/Treble
    Loudness
    Source Tone Memory
    Power IC Management System

General

    Power Output: 4 x 50W High Power Amplifier
    Display LCD: 13 Segments White LCD Display 1Line
    Illumination: 2 illumination Colours Selectable (Green/Red)
    Control Type: Rotary Encoder Knob
    3 PreOuts (2V, Front / Rear / Subwoofer)
    AUX-In: Front AUX Input (3.5mm mini jack)
    Steering Wheel Remote Control Ready
    Remote Control Ready
    Menu Language: English, German, French, Italian, Spanish, Dutch, Russian
    Detachable DIN Trim Plate
    Detachable Face Plate
    Dimmer
    Power Antenna Lead Output
    Remote Turn-On Output
    Face Color: Black
    Mute: -20dB Mute (Remote control only)
    Power Requirement: 14.4 V.DC (11-16V allowable)
    Pre Output Voltage (Before Clipping): 2V / 10k ohms
    Aux In: 1.4V / 10k ohms
    Maximum Mounting Angle: 35° from Horizontal
    Weight: 1.24 kg

Max Power Output Ratings

    Max Power Output: 4 x 50W

FM Tuner

    Tuning Range: 87.5 – 108.0 MHz
    Mono Usable Sensitivity: 0.7 μV
    Alternate Channel Selectivity: 80 dB
    Signal-to-Noise Ratio: 65 dB
    Stereo Separation: 35 dB
    Capture Ratio: 2 dB

MW Tuner

    Tuning Range: 531 – 1,602 kHz
    Usable Sensitivity (IEC Standard): 25.1 μV / 28 dB

LW Tuner

    Tuning Range: 153 – 281 kHz
    Usable Sensitivity (IEC Standard): 31.6 μV / 30 dB

Disc Player

    Frequency Response: 5 – 20k Hz (±1 dB)
    Total Harmonic Distortion (at 1kHz): 0.008 %
    Dynamic Range (at 1kHz): 95 dB
    Signal-to-Noise Ratio: 105 dB
    Channel Separation (at 1kHz): 85 dB
    Wow & Flutter (%WRMS): B.M.L.

USB

    USB Requirements: USB 1.1/2.0
    Max. Power Consumption: 1,000 mA
    USB Class: Mass Storage Class
    File System: FAT 12/16/32
    MP3 Decoding: MPEG-1/2 Audio Layer-3
    WMA Decoding: Windows Media™ Audio
    AAC Decoding: AAC-LC Format ′′.m4a′′ File
    Number of Channels: 2-Channel (Stereo)
    Frequency Response: 5 – 20k Hz (±1 dB) *May differ depending on the encoding software and bit rate.
    Total Harmonic Distortion (at 1kHz): 0.008 %
    Dynamic Range (at 1kHz): 95 dB
    Signal-to-Noise Ratio: 105 dB
    Channel Separation (at 1kHz): 85 dB

Sound Tuning

    Subwoofer Level Adjustment: 0 to 15
    Subwoofer Phase Setting: 0° or 180°
    Low Pass Filter: Off, 60/80/120/160 Hz
    Bass Level Control Range: -7 to +7 dB
    Bass Center Frequency: 60/80/100/120 Hz
    Bass Bandwidth Adjustment (Q): 4 Choices (0.5=wide, 1.0=medium, 1.5=medium, 2.0=narrow)
    Mid Level Control Range: -7 to +7 dB
    Mid Center Frequency: 500/1k/1.5k/2.5k Hz
    Mid Bandwidth Adjustment (Q): 4 Choices (0.75=wide, 1.0=medium, 1.25=medium, 1.5=narrow)
    Treble Level Control Range:  -7 to +7 dB
    Treble Center Frequency: 7.5k/10k/12.5k/15k Hz
    Treble Bandwidth Adjustment (Q): 2 Choices (0.75=wide, 1.25=narrow)
    Loudness: 100 Hz 10 dB
    Bass Engine SQ: Level 0 – 6
    Application SVolume Level: -14 to +14dB

Dimensions

    Din Size: 1 DIN
    Chassis Size (W x H x D) mm: 178 x 50 x 161,5 mm
    Nose Piece Size (W x H x D) mm: 170 x 46 x 25 mm
